Up to 5 text, integer, date, and boolean data types supported.
●
●
Supports multiple Categories and Items.
●
●
Customizable icons.
●
●
Primary and Secondary field sorting.
●
●
DISPLAY OPTIONS
Quick type for list filtering.
●
●
Frequency logging and Priority sorting.
●
●
Supports landscape screen orientation.
●
●
Quick column switching view on Item lists.
●
●
Supports up to 4 display fields in Item listview.
●
●
Recognizes and displays links of photos and images (JPG, PNG, GIF).
●
●
Custom search filtering options.
●
●
DATA TRANSFER
Supports Data Import and Export.
●
●
Supports CSV conversion.
●
●
Import, Export, or Delete all Items for any specific Category.
●
●
Interval Backup reminder.
●
●
GRAPHS
Supports Column graph visualization of data.
●
●
Supports Line graphs and horizontal timeline axis.
●
●
Scrolling horizontal graph display.
●
●
EXTERNAL APP INTERACTION
Forward values directly into other external applications: SMS Messaging, Web Browser, Google Maps, Email, Phone, Clipboard.
●
●
Group and send multiple SMS message recipients for any specific Category.
●
●
Group multiple e-mail recipients and send e-Mail blast.
●
●
Group and launch multiple Web Browsers instantly to view all your favorite websites.
●
●
Generate and eMail your Items as a datasheet Report.
●
●
Choose filename locations for your Photos/Music/Video/Documents locally on your webOS smartphone.
●
●
Choose phone numbers and eMails from your Contacts app.
●
●
Acquires current GPS latitude and longitude coordinates.
●
●
CUSTOM PROGRAMMING & LOGIC
Supports basic formula calculations against field values.
●
●
Supports basic conditional comparison logic against field values.
●
●
Supports query filtering logic against Item lists.
●
●
Supports running totals and running differences.
●
●
Supports lookup fields.
●
●
Supports date manipulation functions.
●
●
OTHER BENEFITS
Share and download free My DataBank Categories from around the world.
●
●
Ads and record limitations removed.
●
Getting Started
Learning the Basics
My DataBank accommodates the basic functions typical in a database environment including adding, viewing, filtering, editing, and removing multiple records. If you are new to webOS, it is highly recommended that you watch the following YouTube video demonstration to help you familiarize and learn how to navigate around My DataBank within a webOS environment.
Using webOS involves learning new and unique standards that are necessary to help you navigate around a webOS environment. Most importantly, how to return to the previous screen which requires a back-swipe gesture across the gesture area or how to delete records by pressing on a record and swiping it to the side until the delete button for confirmation is revealed.
My DataBank provides several pre-defined categories upon installation which include Blood Pressure, Home - To Do, Favorite Restaurants, and many more. However, the true power of My DataBank comes with the ability to allow you to customize all your existing Categories or design a new Category right from scratch!
This kind of flexibility allows you to expand beyond the default Categories and lets you take control many aspects of the information you wish to maintain, analyze, log, and store directly from your own mobile device.
Before we dive into the actual steps of designing your own Category, it might be helpful to visualize the relationship of how Categories and Items are bound.

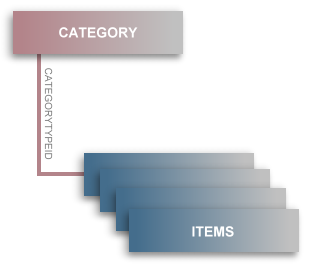

This illustration shows the heirarchy and the basic relationship between Categories and Items. As shown, the Categories to Items is a one-to-many relationship. That is, a single category is linked across multiple items joined by a common field or the Unique Identifier (categorytypeid) which is defined for each category .
To begin, you'll need to create and define your own category:

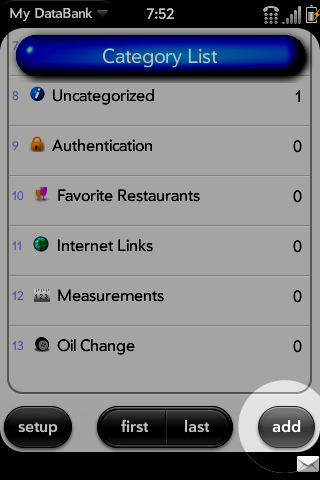

From the Category List screen, tap on the Add button.
After tapping on the Add button, you will be forwarded to the Category Setup screen. At minimum, the following items under the Category Setup screen should be completed:
1. Category Title
2. One or more Field Titles (e.g. Text 1, Integer 1, Date 1, Bit 1, Text 2, etc.)
For example, if you wanted to create a category to store your collection of favorite shopping stores, you could do the following:

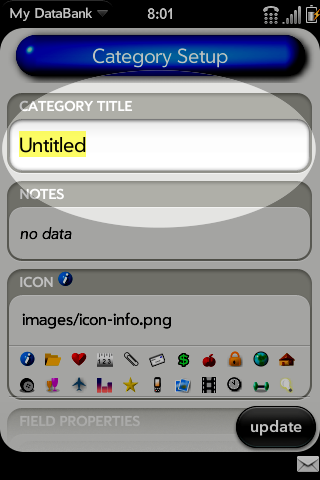

For the Category Title, enter Favorite Shopping Stores.

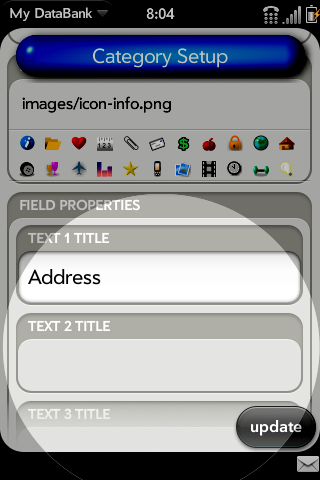

For the Text 1 Field Title, enter Address.
Upon completion, tap on the Update button to accept your changes.

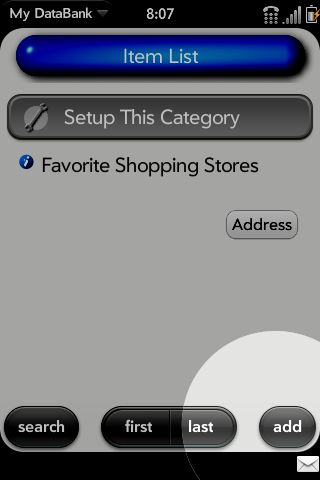

This will take you to the previous screen, Item List. From this screen, you can begin entering items for your new category by tapping on the Add button.
After tapping on the Add button, you will be forwarded to the Item Detail screen which will allow you to enter any data you have setup from the Category Setup screen. At minimum, the Item Title should be entered.
For example, you could enter Best Buy as the Item Title as one of your favorite shopping stores. In the Address field created above, you could enter the location for this shopping store.
Upon completion, tap on the Update button to accept your changes. This will take you to the previous screen, Item List.
Note: If you are currently in the actual store, you can tap the Get GPS Coordinates button from the Item Detail screen to acquire the longitude and latitude values of your location. The Send Value button can later be tapped to show the actual location of the store through Google Maps.
Once you have mastered the simplicity of creating your own categories and adding items for your custom categories, you can add additional fields and modify preferences from the Category Setup screen to improve immediate access to your information and to enable data entry for other types of data you would like to include.
For advanced users, visit the Advanced section of this documentation and explore Query Filtering and Basic Formula Calculation features. This allows you to filter the list of information you want to see and automatically complete field values based on basic arithmetic logic.
Also, feel free to clone, examine, and learn from some of the designs that define the default categories created by My DataBank.
To highlight and select certain characters in any textbox, tap on the starting location then hold the Shift key and carefully slide your finger across the screen.
Text Navigation
To move the cursor at any position characters at a time in any textbox, tap on the starting location then hold the Orange key and carefully slide your finger across the screen.
Category List
Shows category list
To Delete categories from the list, swipe the category to the left or right and press on Delete.
To Add categories into the list, press on the Add button and fill in the category information.
Item List
Shows item list
To Delete items from the list, swipe the item to the left or right and press on Delete.
To Add items into the list, press on the Add button and fill in the item information. Modify the Category settings if additional fields are necessary.
Item Detail
Shows item detail configured at Category Setup screen
Press on the button next to text fields to pass the value to external applications: Phone, Messaging, Web, E-Mail, Google Maps, Clipboard
Clone Item
Get GPS Coordinates: Acquires the current Latitude and Longitude values which can be stored into text fields or the clipboard
Security Access
Enabled when a Passcode has been assigned.
Category Setup
Title
Notes
Icon: Also accepts external images from the internet using http://
Priority: Essential for Frequency Logging to function which can be used for sorting.
Primary and Secondary List Order
Item List Include
Field Titles: 5 Text, 5 Integers, 5 Dates, 5 Bits
Field Order
Clone Category
Configuration Setup
Assign Passcode
Screen Timeout: disabled, 1, 5, 10, 20, 30, 60 minutes
Sort Category: none, name, priority, priority descending
Log Frequency: Increases the priority value for Categories selected when enabled.
Export
Export Categories: Allows you to backup your Categories by e-mailing your data to yourself.
Export Items: Allows you to backup your Items by e-mailing your data to yourself.
Backup All Data: Allows you to backup your Categories and Items by e-mailing your data to yourself.
Import
Append Categories
Append Items
Delete All Categories: Use this function only if you are certain that you want to delete all your Categories from the device.
Delete All Items: Use this function only if you are certain that you want to delete all your Categories from the device.
Send Values to external Applications
Phone, Messaging, Web, E-Mail, Google Maps, Clipboard
